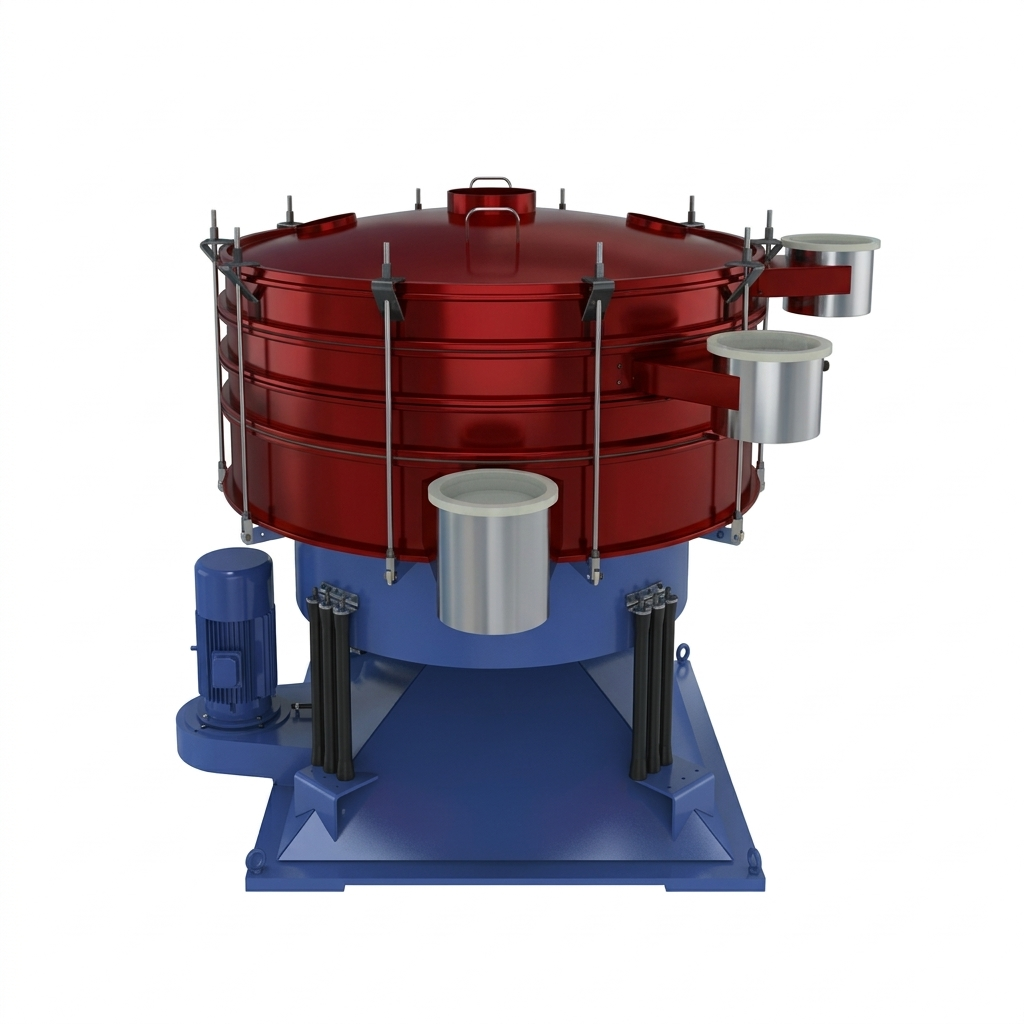

Industrial Pendular Screen

High-precision tumbler screening machine designed for delicate grading and separation of fine biomass, wood flour, and chemical powders using advanced pendular motion.

Key Features

Precision Tumbler Motion

Simulates the circular and tilting motion of manual sieving, ensuring maximum material spread and highly accurate grading.

Multi-Deck Grading

Capable of supporting up to 5 screen decks simultaneously, allowing for the separation of multiple particle sizes in a single pass.

Gentle Material Handling

Low-acceleration pendular movement prevents product degradation, making it ideal for fragile and delicate materials.

Dust-Tight Sealing

Fully enclosed stainless/carbon steel housing with high-grade gaskets to prevent fine dust leakage and environmental contamination.

Applications

Fine Wood Flour Grading
Biomass Powder Processing
Chemical & Pharmaceutical
Food & Nutrition Powders
Mineral & Metallic Grading

Technical Specifications

Specification Details
Screening Diameter 1200 – 2600 mm
Number of Decks 1 – 5 Layers
Vibration Frequency 180 – 300 RPM
Main Motor Power 1.5 – 7.5 kW
Sieving Precision Up to 500 Mesh
Processing Capacity 200 – 5,000 kg/hour
Construction Material SS304 / Industrial Carbon Steel

Optional Features

Ultrasonic screen deblinding system
Bouncing ball mesh cleaning kits
Explosion-proof industrial motor
Pneumatic deck lifting device

Why Choose Sabi Energy?

Sabi Energy provides reliable biomass preparation equipment designed for high efficiency, durability, and consistent performance. Contact us today for customization, pricing, and technical consultation.
